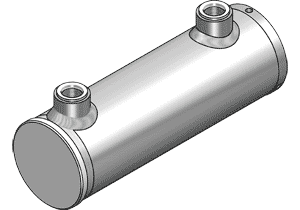

The double acting hydraulic cylinders series HM0LM-C200 with welded endplug and without attachments is particularly required in the mobile and in the agricultural field. Reliability, lightness and reduced total distance are the main characteristics. We present around 70 items in 4 different bores. The availability in stock is around 1000 units.

Technical Info

Max. Pressure: 180 bar
Top Speed: 0,5 m/s
Temperture °C: -25° + 80°
Rod: steel UNI C45 - SAE 1045
Rod: Chrome 25 Micron ±5 Rating 9/120 h ISO 10289
Tube: Steel St 52.3 DIN2393 ISO H9
