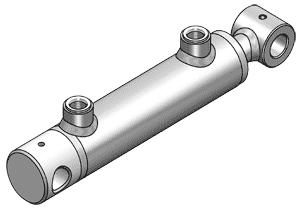

The double-acting hydraulic cylinders series HFR/HFR2S-M250 with welded bored endplug and front bush are required in particular in the mobile field and in agriculture. For this cylinder- reliable and versatile - we present about 75 models in 8 different bores. The average availability in stock is of around 5000 units.

Technical Info

Max. Pressure: 210 bar
Top Speed: 0,5 m/s
Temperture °C: -25° +80°
Rod: steel UNI C45 - SAE 1045
Rod: Chrome 25 Micron ±5 Rating 9/120 h ISO 10289
Tube: Steel St. 52.3 DIN2393 ISO H9
